Triathletes demand speed, precision, and comfort, for peak race performance. The Amanyar 1.0 Disc combines optimised aerodynamics, the torsional strength required for effective power transfer, and the adjustability to achieve and maintain race-winning pace over varied distances.
Where Speed Meets Endurance
Triathletes demand speed, precision, and comfort, for peak race performance. The Amanyar 1.0 Disc combines optimised aerodynamics, the torsional strength required for effective power transfer, and the adjustability to achieve and maintain race-winning pace over varied distances.
Aerodynamic Superiority
Elves Bikes advanced engineering has produced an aerodynamically superior frameset, which has preserved the torsional strength of traditional double diamond design. To absorb race level braking forces, and with your safety at the forefront of our innovation, our research and development team have retained the seat stay to ensure reliable and stable stopping power. Our truncated airfoil design minimises surface areas exposed to the elements, consequently, we have engineered a frameset that specifically channels airflow efficiently, minimising resistance and reducing turbulence and drag.
Built to go the Distance
The Amanyar 1.0 has been designed with up to 2.25 litres of fuel and hydration storage, reducing the requirement for an in race stop, gaining you critical seconds. 500ml can be stored in the aerodynamic downtube bottle and up to 750ml behind the saddle. The remaining 1 litre is integrated inside the top-tube, utilising a bladder and hydration tube for handsfree hydration, whilst remaining in the aero position.
Engineered for your Toughest Race
The design of the Amanyar 1.0 positions the rider in an aggressive aerodynamic riding position to further reduce drag and improve efficiency. Applying the EPS and latex bladder moulding technique, we have constructed the frameset utilising the trusted Toray T800 Japanese carbon fibre, reinforced by Toray T1000 in key areas such as the headtube and bottom bracket to obtain the optimal strength to weight ratio. The result is a stiff, highly responsive riding experience that provides the rigidity to transfer raw watts into forward momentum, preventing critical power loss caused by frame flexing during pedaling . Elves Bikes commitment to continual improvement has led to the use of a T47 threaded bottom bracket for ease of building and ongoing maintenance.
Exceptional Handling and Choice
With Triathlons ranging from a sprint to an ultra-ironman, it’s challenging to find a “one bike fits all” solution. To support this, the Amanyar 1.0 is available with a choice of two adjustable aerobars, the Orome AeroRay Sport TT bar, or alternatively the AeroRay Pro Ergonomic TT bar. This aids triathletes to design their cockpit to their specification, in accordance with the individual race conditions and distance.
The modern design, with a modular stem and bar combination, provides a compact integrated-looking cockpit, offering exceptional handling around corners and responsiveness when standing on short climbs. Both the AeroRay Sport, and AeroRay Pro, come in two bar width sizes (400mm & 420mm) with an adjustable stem, front and back handlebar extensions, and left and right adjustable forearm rests. This optimal riding position allows triathletes to draw their upper body and arms both forwards and inwards into a tucked aero position, which ultimately minimises wind-distance drag, especially at high speeds.
Your True Colours

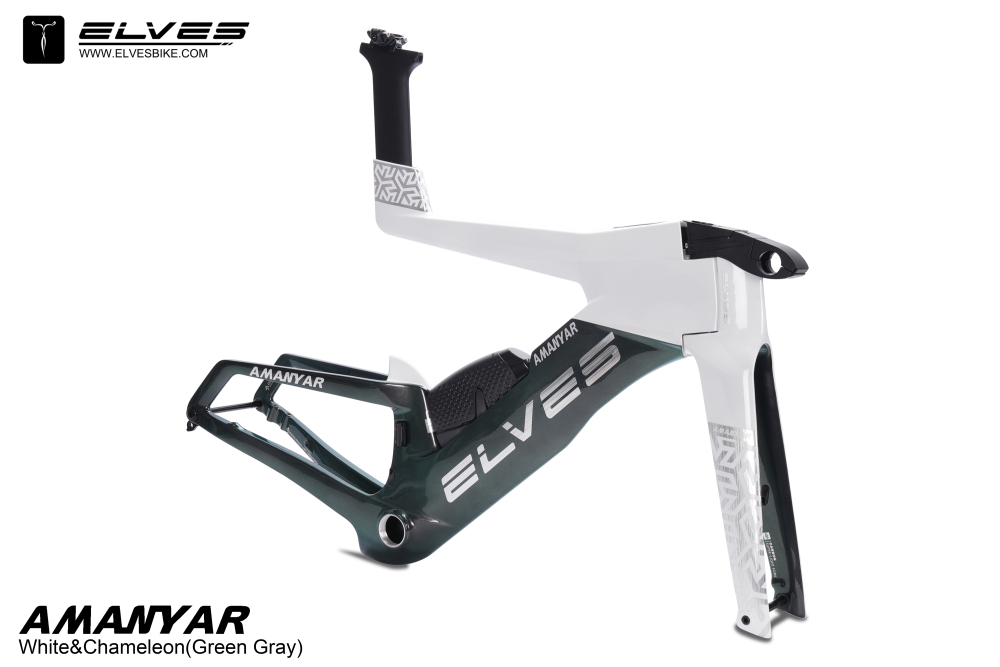

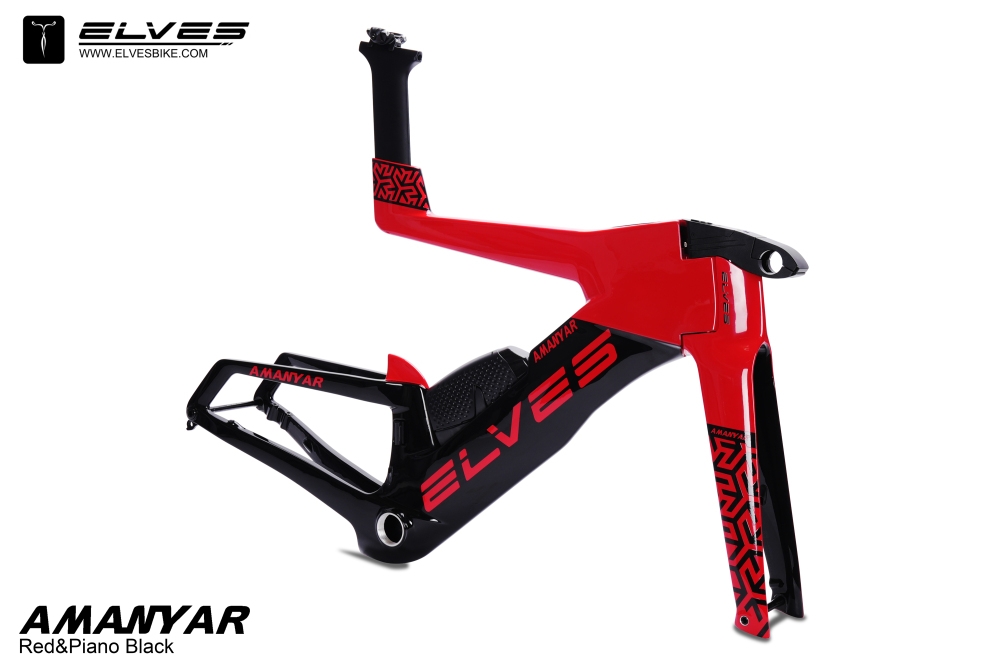

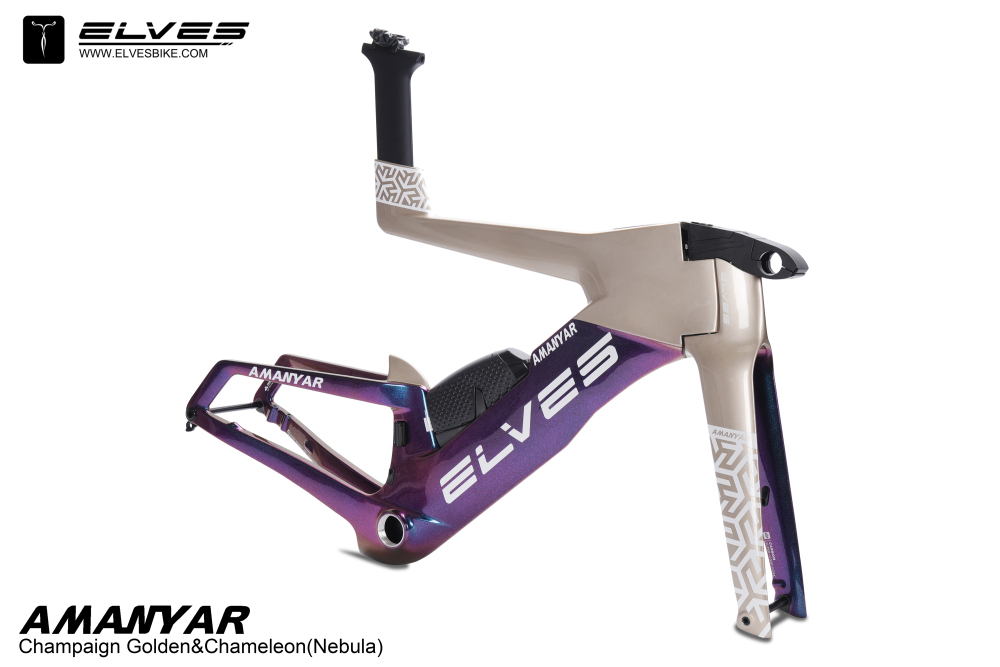

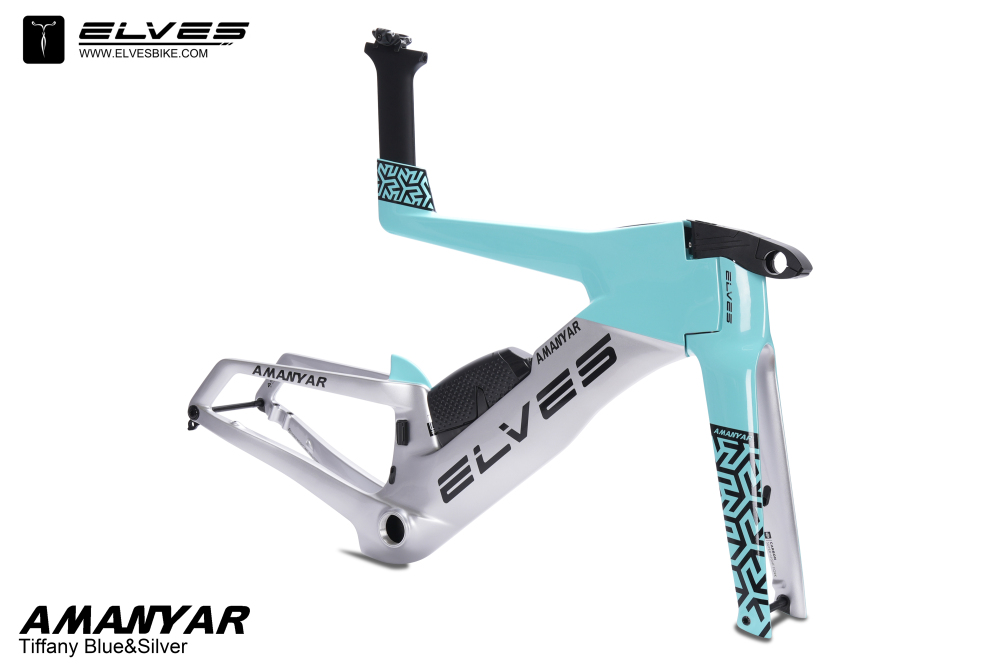

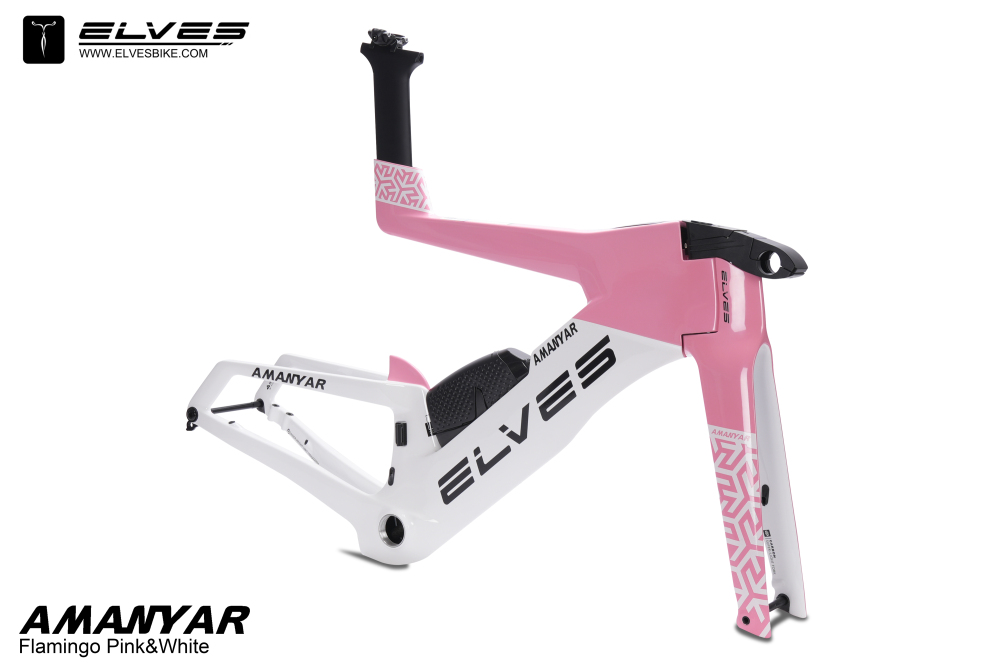

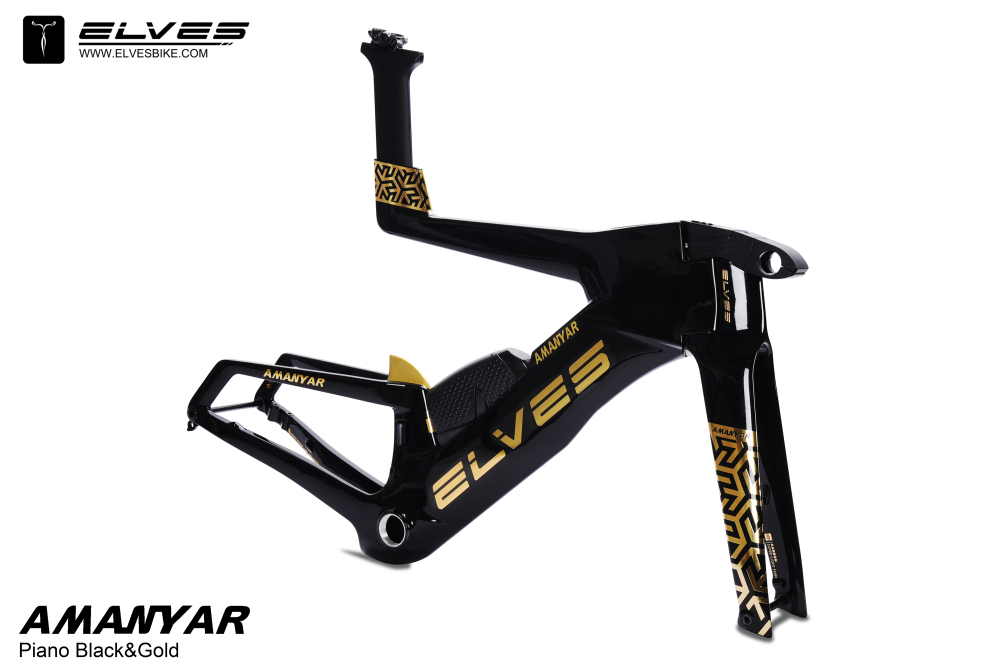

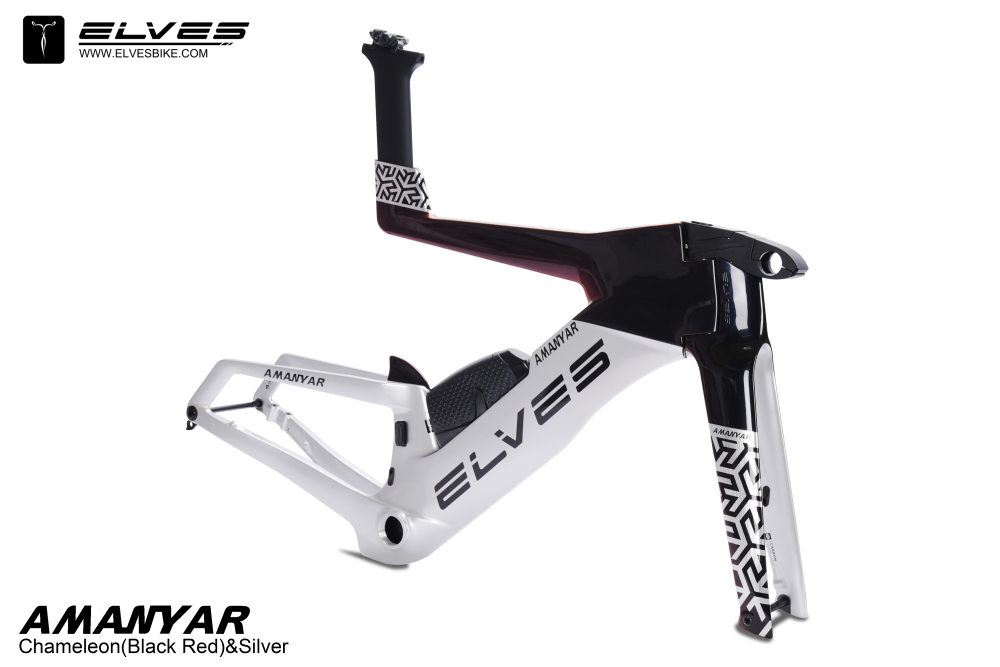

In collaboration with DSD, our design house in Hong Kong, and using the datasets of the pantones our riders have been selecting, the Amanyar 1.0 is available in seven beautifully designed standard colours. Our ethos stems from a deep understanding of unmet customer needs, driving our strategic and inclusive decision to ensure that custom painted frames, celebrating individualism, remain highly accessible to all. The Amanyar 1.0 is no exception, with ten different design templates, inspired by our customers, that utilise over sixty different colorways, and 4 decal choices, creating over 100,000 bespoke paint options.
Sizes & Compatibility

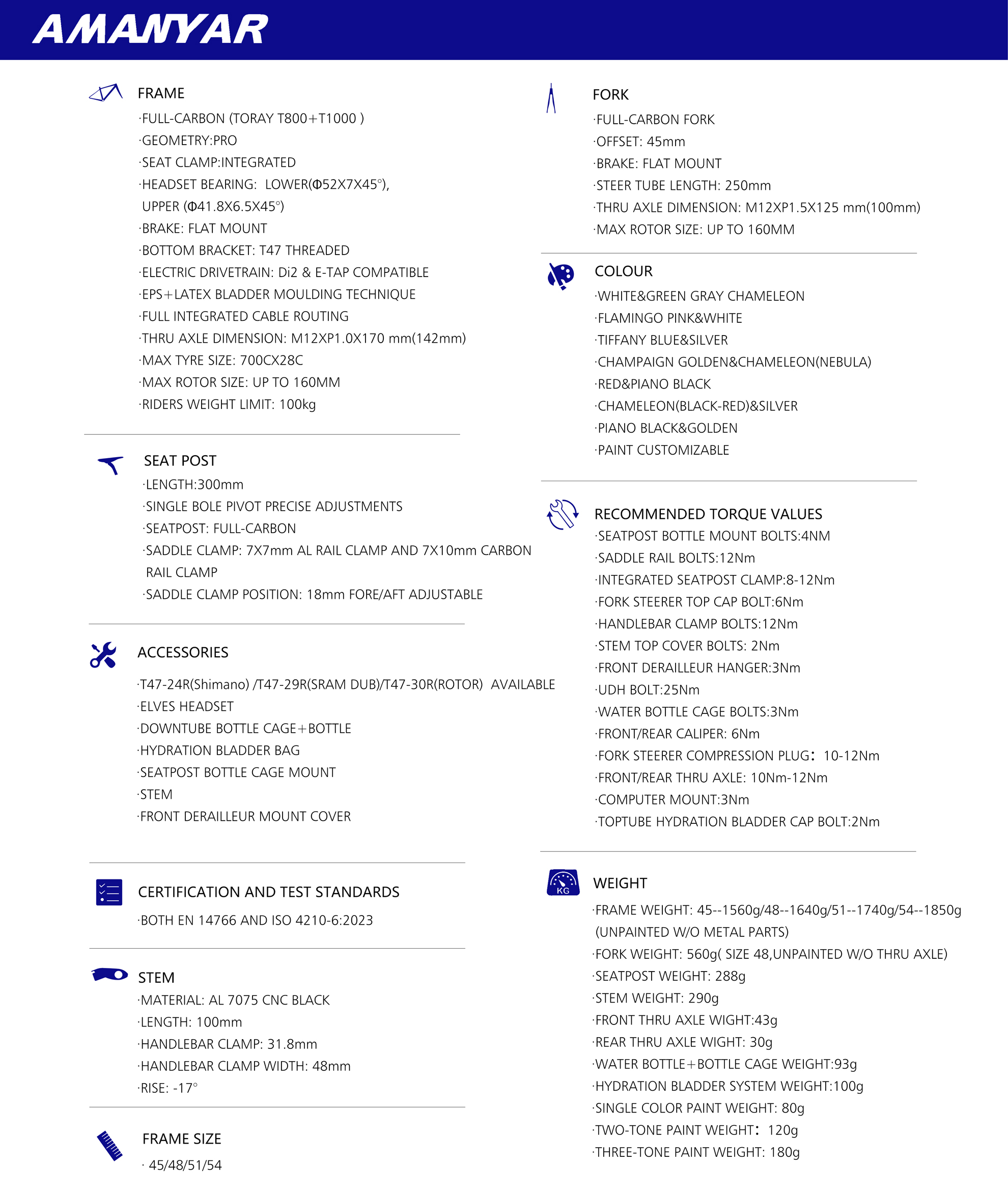

The Amanyar 1.0 is available in the following frame sizes, 45cm 48cm 51cm & 54cm, making it suitable for riders from 160cm-195cm. Please refer to the detailed geometry provided to gain further insight. The Frame is compatible with all Shimano and SRAM 12- speed groupsets. The frameset supports disc brakes and will accept tyres up to 28c.
Warranty
Elves Bikes design philosophy ensures our products are trusted and well respected within the industry in terms of safety and durability. However, to provide our riders with additional security, Elves bikes offer a 5 Year global warranty on our frames and forks, two years on our wheels, and one year on our handlebars and saddles.
Our Promise
Together, with our valued customers, Elves Bikes are globally transforming the price point for performance. We are committed to creating far greater rider equality through the production of quality products at affordable price points. We do not believe that riders should have to make the difficult choice and compromise between price or quality, at Elves Bikes, we deliver both. We strive to create inclusive opportunities in everything we do, ensuring that our riders globally can unleash their true cycling potential.
